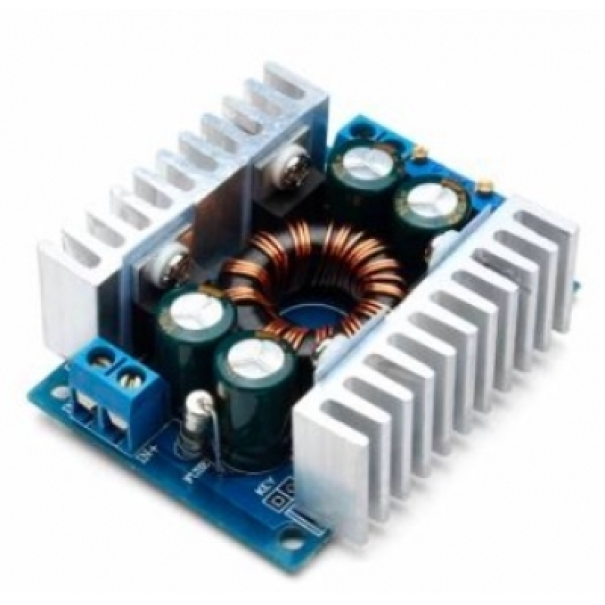

MODULE STEP DOWN DC-DC TENSION RÉGLABLE 5-30Vdc 8A

MODULE STEP DOWN DC-DC TENSION RÉGLABLE 5-30Vdc 8A

• Input voltage: DC5-30V
• Input current: 8A (MAX)  peak 10A (6A work a long time)
• Quiescent current: 4mA (operating voltage is not the same there will be errors)
• Output voltage: 1.25-30V continuously adjustable
• Output Current: 10A (MAX) (5A long natural heat inside)
• Output current range: 0.2-10A
• Working temperature: -40 to + 85 degrees
• Operating frequency: 150KHz
• Conversion efficiency: Typical 91% (12V turn 12V5A) maximum 93%
• Overcurrent protection: there
• Short circuit protection: (limiting protection)
• Overtemperature protection: (automatically reduce the output voltage after overtemperature)
• Input reverse polarity protection: None, (if necessary, please enter the string into the diode)
• Output anti-anti-irrigation: Yes, no need for charging plus blocking diode.
• Connection: Terminal output, (IN is the input, OUT output)
