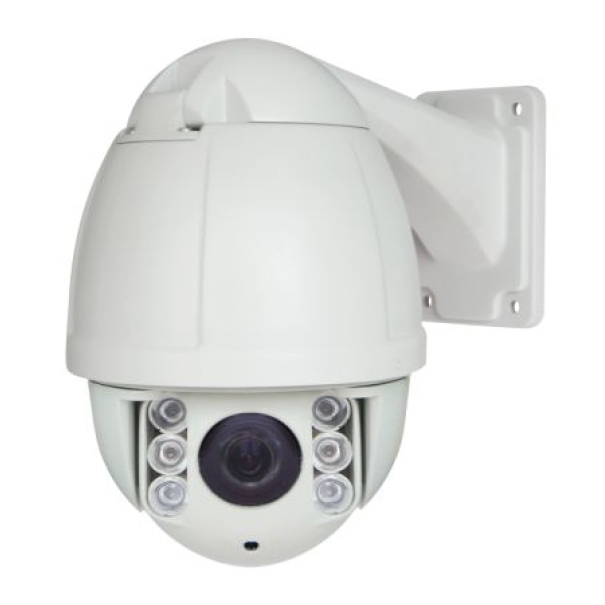

CAMERA DOME AHD PTZ 1080P + IR 60M.

CAMERA DOME AHD PTZ 1080P + IR 60M

CAMERA

• Image Sensor: 1/2.8" SONY CMOS Sensor
• Horizontal Resolution: 1080P
• S/N Ratio: >58db

PTZ

• Horizontal Rotation Speed: 200°/s
• Horizontal Rotation Range: 360°
• Tilt Rotation Speed: 80°/s
• Tilt Rotation Range: 93°
• Auto Flip: Horizontal 180°, Vertical 93°
• Ratio Speed: Support
• 360° Scan: User programmable
• 360° Scan Speed: 01-64speed setting available
• A-B Scan: User programmable
• A-B Scan Speed: 01-64speed setting available
• PWR on Action: Memory/Tour/360 scan/AB scan/Home/Nop
• Park Time: 1-60mins setting available
• Dwell Preset: 1-60s interval available
• Preset Points: 220
• Go to Preset Speed: 200°/s
• Guard Tours: 3 groups
• Guard Points: Max.16 points, dwell time user selectable

Auxiliary Interface

• Communication Protocol: Pelco-D, Pelco-P
• Communication: RS485
• Baud Rate: 1200/2400/4800/9600bps

General

• Operating Temperature: Indoor: 0°~ +40° Outdoor: -40°~ +60°
• Operating Humidity: =95% Non Condensing
• Heater & Blower: Auto temperature control
• Auto Control IR LED: PWM
• OSD Menu: English
• Power: DC12/3A
• IR Illumination Distance : 60M
• Power Consumption: = 36W
• Lightning Protection: Transient voltage 6000V
• Dimension: 28x32x20(cm)
• Weight: 3.4kgs
