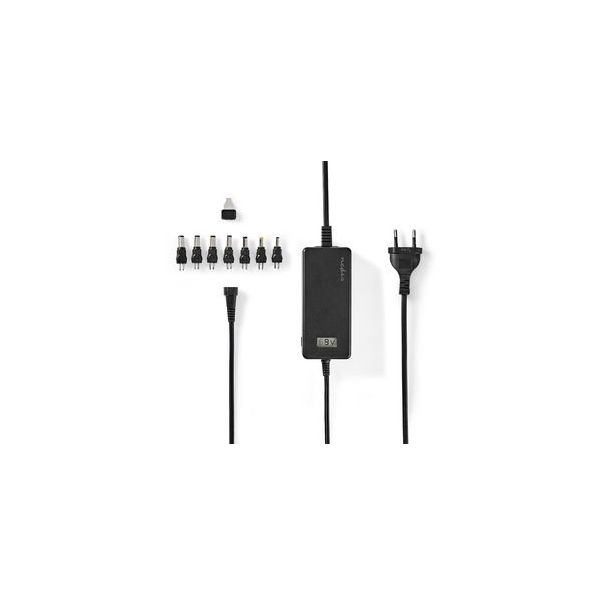

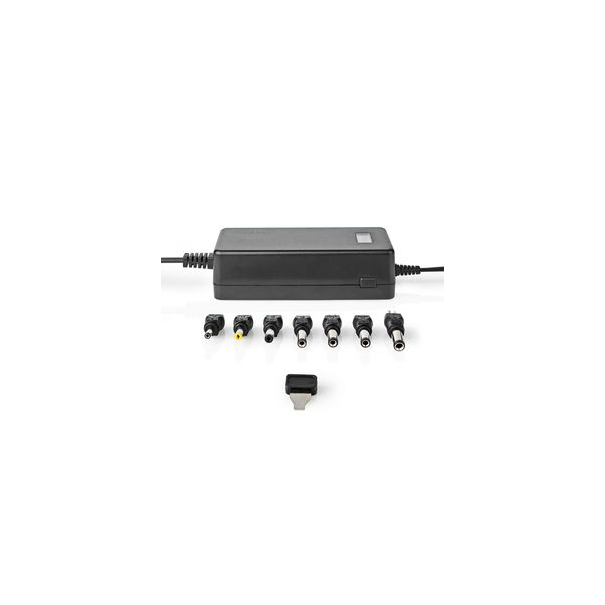

ALIMENTATION À DÉCOUPAGE RÉGULÉE - SORTIE: 5 A 24Vcc (36W)

Spécifications

• entrée: 100-240 VCA 2.0 A 50/60 Hz
• puissance: 90 W
• courant de sortie max.: 6000 mA
• sortie: 15 V / 16 V / 18.5 V (18 V) / 19.5 V (19 V) / 20 V 90 W max.
• fiches:
• [product name=PLUGSPA01]PLUGSPA01[/product] (0 - 5.62 A): 6.5 x 4.4 mm / 1.4 mm
• Fujitsu: 16 V - 3.36 A / 3.75 A
• Sony: 16 V - 3.75 A / 4 A
• [product name=PLUGSPA02]PLUGSPA02[/product] (0 - 4.74 A): 6.5 x 4.4 mm / 1.4 mm
• Fujitsu: 19 V - 3.16 A
• Sony: 19.5 V - 2.15A / 3 A / 3.9 A / 4.1 A / 4.7 A
• Sony: 19 V - 3.16 A
• [product name=PLUGSPA03]PLUGSPA03[/product] (0 - 6 A): 6.3 x 3.0 mm
• NEC: 15 V - 4 A
• Toshiba: 15 V - 3 A / 4 A / 5 A / 6 A
• [product name=PLUGSPA04]PLUGSPA04[/product] (0 - 5.62 A): 5.5 x 2.5 mm
• IBM: 16 V - 3.5 A / 3.36 A / 4.5 A
• [product name=PLUGSPA05]PLUGSPA05[/product] (0 - 4.9 A): 5.5 x 2.5 mm
• Delta: 19 V - 3.42 A / 4.47 A / 4.74 A
• HP, Compaq: 18.5 V - 4.9 A
• HP, Compaq: 19 V - 3.16 A / 4.74 A
• Compaq: 19 V - 3.16 A / 3.42 A / 4.8 A / 4.9 A
• NEC, Dell: 19 V - 3.16 A
• Fujitsu: 19 V - 3.16 A / 4.22 A
• Liteon, Toshiba: 19 V - 3.16 A / 3.42 A / 3.95 A / 4.74 A
• IBM: 19 V - 4.2 A
• Acer, Asus: 19 V - 3.42 A / 4.74 A
• HP: 19 V - 3.95 A
• Gateway: 19 V - 3.16 A / 3.68 A / 4.74 A
• Lenovo: 19 V - 3.16 A / 3.42 A
• 06 (0 - 3.5 A): 3 broches
• Dell: 20 V - 3.5 A / 4.5 A
• [product name=PLUGSPA07]PLUGSPA07[/product] (0 - 4.74 A): 5.5 x 1.7 mm
• Acer: 19 V - 1.58 A / 3.42 A / 4.74 A
• Dell, HP: 19 V - 1.58 A
• Liteon: 19 V - 3.95 A / 4.74 A
• [product name=PLUGSPA08]PLUGSPA08[/product] (0 - 4.74 A): 4.8 x 1.7 mm
• HP, Compaq, LG: 18.5 V - 3.5 A
• HP, Compaq, LG, Acer: 19 V - 4.74 A
• Delta, NEC: 19 V - 2.64 A
• Asus: 19 V - 2.1 A / 2.64 A
• Compaq: 18.5 V - 2.7 A / 3.8 A / 4.9 A
• [product name=PLUGSPA09]PLUGSPA09[/product] (0 - 4.74 A): 7.4 x 5.0 mm
• Dell: 19.5 V - 2.64 A / 3.34 A / 4.62 A
• [product name=PLUGSPA10]PLUGSPA10[/product] (0 - 4.9 A): 7.4 x 5.0 mm
• HP: 18.5 V - 3.5 A / 4.74 A
• HP, Compaq: 18.5 V - 3.5 A / 4.9 A
• [product name=PLUGSPA11]PLUGSPA11[/product] (0 - 4.74 A): 5.5 x 2.1 mm
• Acer: 19 V - 3.16 A / 3.42 A / 4.74 A
• Asus: 19 V - 2.64 A
• fiches de rechange:
• [product name=PLUGSPA13]PLUGSPA13[/product]
• [product name=PLUGSPA14]PLUGSPA14[/product]
• [product name=PLUGSPA17]PLUGSPA17[/product]
• [product name=PLUGSPA18]PLUGSPA18[/product]
• [product name=PLUGSPA19]PLUGSPA19[/product]
• [product name=PLUGSPA29]PLUGSPA29[/product]
• [product name=PLUGSPA31]PLUGSPA31[/product]
• [product name=PLUGSPA32]PLUGSPA32[/product]
• [product name=PLUGSPA36]PLUGSPA36[/product]
• [product name=PLUGSPA37]PLUGSPA37[/product]
• [product name=PLUGSPA37HP]PLUGSPA37HP[/product]
• [product name=PLUGSPA38]PLUGSPA38[/product]
• longueur du câble: ± 120 cm
• dimensions:
• bloc secteur: 144.5 x 67.8 x 17.2 mm
• fiches: 46 x 18 x 13 mm



Caractéristiques


• 11 fiches interchangeables livrées
• détection de tension automatique
• afficheur LCD indique la tension
• design moderne et intelligent
• protection contre la surtension / la surintensité
