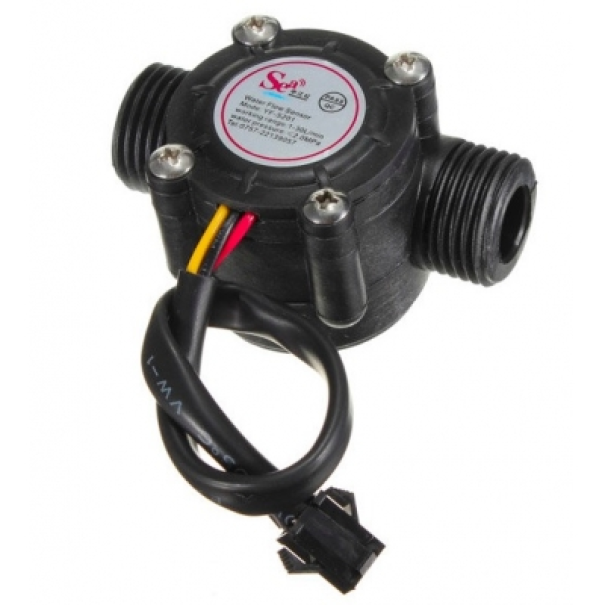

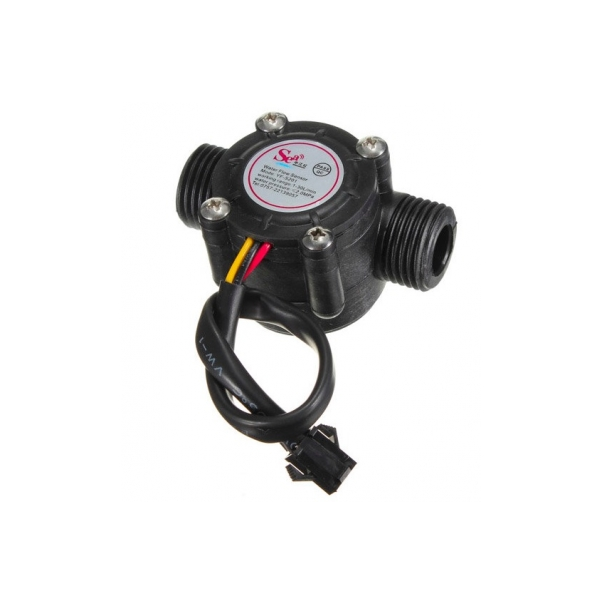

DEBIMETRE 1-30L/min 2.0MPa - EAU

DEBIMETRE 1-30L/min 2.0MPa - EAU

Description:

• This product mainly used for water testing, water cooling system
• High amplitude = 4.6V
• Low amplitude = 0.5V
• Electric strength 1250V/min
• Insulation resistance = 100MO
• Hydrostatic pressure testing = 2.0Mpa

Specification:

• The lowest rated working voltage: DC4.5 5V-24V
• Maximum operating current: 15 mA (DC 5V)
• Working voltage range: DC 5~18 v
• Load capacity: = 10 mA (DC 5V)
• Use temperature: = 80°C
• Operating humidity range: 35%~90%RH (no frost)
• Allowing pressure: pressure 2.0Mpa
• Temperature: -25~+80 °C
• External threads: 1/2"
• Outer diameter: 20mm
• Intake diameter: 9mm
• Outlet diameter: 12mm

Application:

• Water heaters, credit card machines, water vending machine, flow measurement device!
