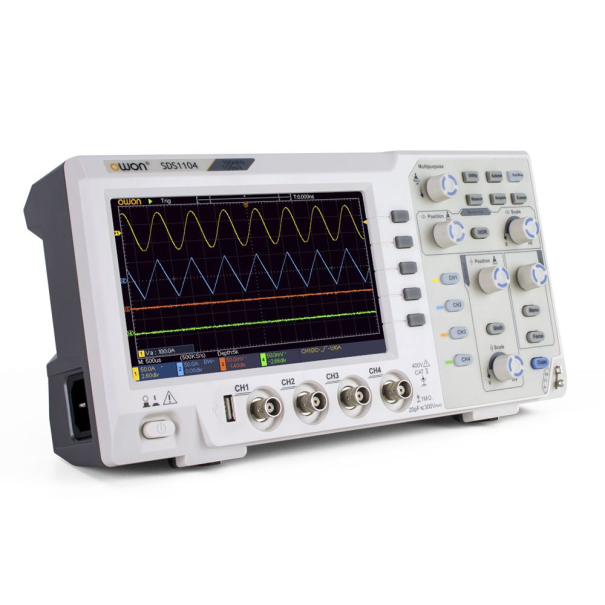

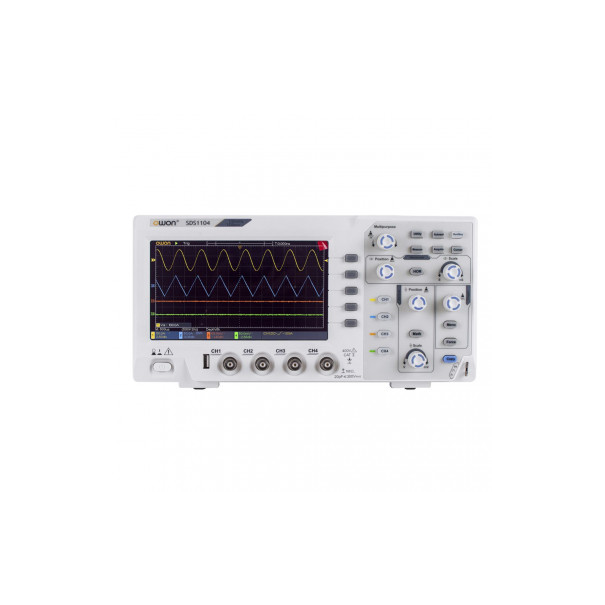

OSCILLOSCOPE 100Mhz 4 CANAUX ECRAN 7''

Model

SDS1104

 Bandwidth

100MHz

 Sample Rate

1GS/s

 Horizontal Scale (s/div)

2ns/div - 1000s/div, step by 1 - 2 - 5

 Channel

4

 Display

7" color LCD, 800 x 480 pixels

 Record Length

20K (80K optional)

 Probe Attenuation Factor

1X, 10X, 100X, 1000X

 Input Coupling

DC, AC , and GND

 Vertical Sensitivity

5mV/div - 5V/div (at input)

 Trigger Type

Edge, Video

 Trigger Mode

Auto, Normal, and Single

 Cursor Measurement

?V,  ?T between cursors,?V and ?T between cursors,Auto-cursors

 Automatic Measurement

Vmax, Vmin, Vpp, Vtop, Vbase, Vamp, Vavg, Vrms, Cycle RMS, Cursor RMS, Overshoot, Preshoot, Freq, Period, Rise Time, Fall Time, +Width, -Width, +Duty Cycle, -Duty Cycle, Screen Duty, FRR, FRF, FFR, FFF, LRR, LRF, LFR, LFF, Delay A?B ?, Delay A?B?, Phase A?B ?, Phase A?B?, +Pulse Count, -Pulse Count, Rise Edge Count, Fall Edge Count, Area, Cycle Area

 Waveform Math

+, -, x, ÷, invert, FFT

 Waveform Storage

16 waveforms

 Communication Interface

USB host, USB device

 Frequency Counter

available

 Power Supply

100V - 240V AC, 50/60Hz, CAT II

 Power Consumption

<15W

 Dimension (W x H x D)

301 x 152 x 70 mm

 Device Weight

1.10 kg
